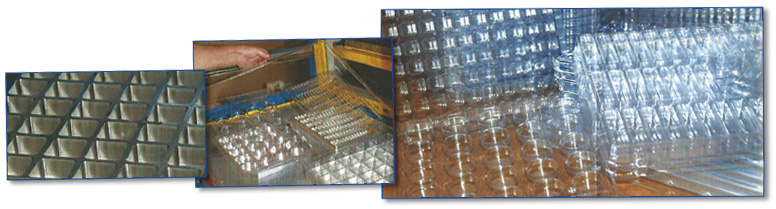

Vacuum Formed Trays


Vacuum Formed Trays

Uses Materials Available
Medical Devices PETG
Electronic Components HIPS
Circuit Boards PVC
Polished Fittings and Parts
Dental

We can ship you our standard stock tray or design a tray to your specifications.

Vacuum Formed Tray
(Standard Tray Sizes)

P/N Tray Size (OD) Cavity Size Number of Cavities
100-095-095 9.5x9.5x.75 .625x.625x.5 100
01-124-080 80.x12.375x.75 10.875x6.5x.5 1
50-090-145 9.0x14.5x1.0 2.25x.5625x.5 50
09-130-130 13.0x13.0x1.5 4.0x4.0x1.5 9
36-115-115 11.5x11.5x1.0 1.5x1.5x1.0 36
12-110-150 11.0x15.0x1.0 3.0x3.0x1.0 12
48-098-148 9.75x14.75x.75 2.75x.75x.75 48
05-075-119 11.875x7.5x1.5 7.5x2.0x1.5 5
20-100-160 10.0x16.0x.625 7.25x.75x.625 20
01-090-118 12.0x15.0x1.0 11.75x9.0x1.0 1
08-120-120 12.0x12.0x1.0 5.25x1.75x1.0 16
40-105-165 10.25x16.5x.75 2.5x1.0x.75 40
80-070-093 7.0x9.5x.25 1.25x.25x.25 80
10-025-043 11.0x17.0x.75 2.5x4.25x.75 10
24-105-170 10.5x17.0x1.25 2.25x2.25x1.25 24
18-115-115 11.5x11.5x.75 1.0x5.0x.75 18
32-098-150 9.75x15.0x.75 .75x4.0x.75 32
100-120-120 12x12x.5 1.5x.5x.5 100
100-070-110 7.0x11.0x.25 1.25x.25x.25 100
04-120-120 11.75x11.75x.50 2.5x10.5x.375 4
11-120-160 12.0x16.0x1.0 16x.5x.5 11
25-145-145 14.5x14.5x1.75 2.5x2.5x1.75 25
06-120-140 12.0x14.0x.50 1.25x12.125x.25 6
25-085-085 8.5x8.5x.50 1.25 Diameter x .375 25
100-055-135 5.5x13.5x.25 .25x.93.x.25 100
10-085-085 8.5 x 8.5 x .50 1.5 Diameter 10
25-080-120 8.0 x 12.0 x .50 1.375 Diameter x .50 25
20-080-120 8.0 x 12.0 x .50 1.625 Diameter x .50 20
24-135-135 12.5 x 13.5 x 1.0 2.0 x 2.25 x 1.0 24
25-145-145 14.5 x 14.5 x 1.75 2.5 x 2.5 x 1.75 25
35-080-080 8.0 x 8.0 x 1.0 1.25 x .75 x .625 35
36-130-130 13.0 x 13.0 x .50 1.75 x 1.75 x .25 36
50-080-095 8.0 x 9.5 x .50 .625 x 1.25 x .25 50
60-095-095 9.5 x 9.5 x .50 .75 x 1.25 x .375 (oval) 60
25-115-115 11.5 x 11.5 x 1.5 1.875 x 1.875 x 1.125 25
68-180-180 18.0 x 18.0 x .375 1.75 Diameter x .335 68



Call us at (507) 263-4469 or fax us at (507) 263-5606 or email us at bobr@infinityplastics.net or submit our Request for Information form.
